Description

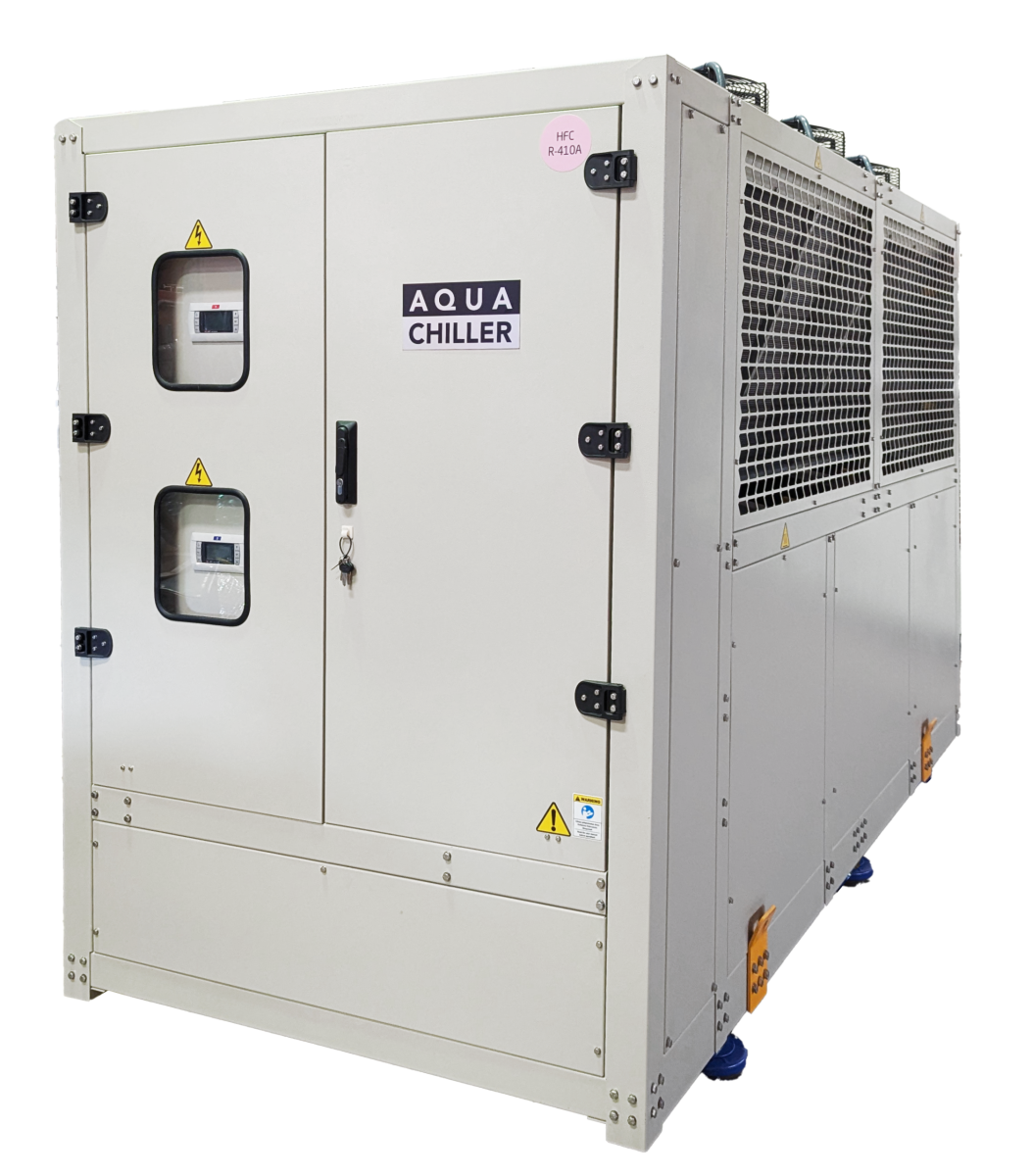

MediCool 80kw chiller incorporates two separate 40kw chillers into one single case design for ultimate redundancy.
The MediCool 80kw dual chiller represents the ultimate level of redundancy for your medical industrial cooling requirements. Featuring two separate chillers into one frame, the MediCool is equipped with Danfoss variable speed compressors, electronic expansion valves, EBM brushless EC fans, and Carel pCO5 control technology, these chillers adapt perfectly to your cooling demands, significantly reducing energy waste.
Each unit undergoes rigorous testing under real-world conditions before dispatch and is built for longevity, with a galvanized steel frame and a thermally insulated stainless steel water tank and dual pumps. Designed for those who demand top-tier, mission critical performance, the MediCool series ensures reliable cooling and is backed by a comprehensive 3-year warranty (b).
3 Year Warranty |
|---|
| All Aqua Chiller units are tested throughout the manufacturing process followed by a substantial and comprehensive test upon completion. Coupled with the world’s most trusted component brands, Aqua Chiller’s products are designed and built to last. |
Notes
(b) 3 year warranty valid when unit installed to our specifications verified by Aqua Chiller commissioning visit. 6 month maintenances must be completed and logged on our website by qualified personnel. Annual water treatment and filter changes must occur with proof provided. Aqua Chiller can offer install and maintenance packages to suit.
Features
- Capacity 80kw at 10c supply, 35c ambient.
- High efficiency and quiet operation with variable speed driven scroll compressors and EC Brushless fans
- Chiller has stepless capacity control in 1% increments from 15% through to 100% – ensuring the chiller only works as hard as it needs to at all times.
- European built and designed for Australian conditions.
- 3 year warranty included as standard (b).
- Complete separate, airconditioned electrical compartments for ultimate level of redundancy and protection of components.
- Galvanized steel frame further protected with polyester powder paint.
- Heavy duty adjustable feet to provide stability.
- Less refrigerant charge by using dual efficient brazed plate heat exchangers as the evaporators.
- Equipped with dual electronic expansion valves.
- Includes two independent, generously sized copper pipe aluminum finned condenser coils for high efficiency.
- Features twin Carel pCO5 series advanced controller with optional web control card, remote display or RS485 capabilities.
- Thermally insulated 300L stainless steel water tank.
- Internal stainless steel pumps with 3.5bar of pressure at design flow 14m3/h.
- Easy to service design.
- Flow switch protection.
- High and low pressure protection.
- Thermal overloads on motors.
- Phase Rotation, Fail, and Frequency protection.
- Alarm output contact.
- Remote on/off contact.
- Anti Freezing Alarm to protect evaporator.
- All models are tested under real conditions before shipment.
- Installation and maintenance plans are available.
Aqua Chiller MediCool 80kW Specifications
| Cooling Capacity | 80kw @ 10c supply, 35c ambient |
| Compressor Power Input | 23.8 kW (2 x 11.9) |
| Fan Power Input | 2.4 kW |
| Pump Power Input | 1.9 kW |
| Combined Power Input | 27.6 kW |
| Power Supply | 415/3/50 V/Ph/Hz |
| Operating Current Draw at Design Point 80kW | 49.8A total (24.9A each side) |
| Max Current Draw | 74.8A total (37.4A each side) |
| Type of Refrigerant | R410a |
| Outdoor Installation | Suitable |
| Expansion Device | Electronic Expansion Valve x2 |
| Condenser Type | Copper Pipes, Aluminum Fins |
| Fan Type | EC Axial (Ø50) |
| No. of Fans | 6 |
| Fan Motor Power | 0.4 kW |
| Fan Speed Control | 10%-100% |
| Condenser Air Flow Rate | 36600 m3/h |
| No. of Condensers | 2 |
| Compressor Type | AC Inverter Scroll |
| No. Compressors | 2 |
| Compressor Capacity Control Steps | 0%, then stepless from 15% to 100% |
| No. of Refrigerant Circuits | 2 |
| Evaporator Type | Brazed Plate Heat Exchanger x2 |
| Evaporator Flow Rate | 14 m3/h |
| Tank | Included, pressurised |
| Tank Material | AISI 304 Stainless Steel |
| Tank Volume | 300 L |
| No. of Pumps | 2 |
| Pump Type | AISI SS304 Centrifugal |
| Pump Pressure | 3.5 bar @ design flow |
| Flow Protection | Yes |
| Water Inlet Size | 50 DN |
| Water Outlet Size | 50 DN |
| Type of Controller | Carel pCO5 |
| Modbus | Option |
| Supervisory connection and web interface card | Option |
| HP Control | Semi Auto Reset Switch and Transducer |
| HP Control | Semi Auto Reset Switch and Transducer |
| HP Gauge |
Transducer |
| LP Control | Yes |
| LP Gauge | Transducer |
| Dimensions | 1400 W x 3200 D x 2210 mm H |
| Dry Weight |
1350 kg |
Notes
- Nominal cooling capacity is calculated with 10°C chilled-water supply and 35°C inlet cooling air temperature at system flow rate and pressure
- Recommended temperature range of chilled fluid: 3°C and 25°C. Use of glycol recommended for set points under 6°C.
- Temperature difference between inlet and outlet chilled fluid between 4°C and 7°C. Contact us for temperature splits outside of this range
- All figures are at the rating point of 7c supply in 35c ambient.
- We recommend the use of R134a when ambient temperatures are expected to reach 42°C+
